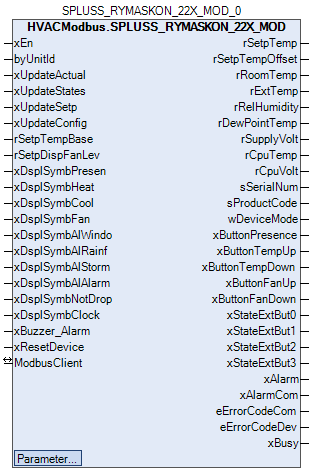

# SPLUSS\_RYMASKON\_22X\_MOD ## `SPLUSS_RYMASKON_22X_MOD` (FB) `FUNCTION_BLOCK` SPLUSS\_RYMASKON\_22X\_MOD ### Representation
InOut: | Scope | Name | Type | Initial | Comment | | ----------- | ------------------- | ------------------------------- | ---------------------------------------- | --------------------------------------------------------------------------------------------------------- | | Input | `xEn` | `BOOL` | TRUE | Enable / disable communication (TRUE = enable) | | Input | `byUnitId` | `BYTE` | 0 | Device address (1 .. 247) | | Input | `xUpdateActual` | `BOOL` | FALSE |

Update of actual values (on every rising edge
)

| | Input | `xUpdateStates` | `BOOL` | FALSE | Update of the states (on each rising edge) | | Input | `xUpdateSetp` | `BOOL` | FALSE |

Update of setpoints (on every rising edge
)

| | Input | `xUpdateConfig` | `BOOL` | FALSE | Update of the configuration (on each rising edge) | | Input | `rSetpTempBase` | `REAL` | 22.0 | Base setpoint temperature (degrees Celsius) | | Input | `rSetpDispFanLev` | `REAL` | 0.0 | Setpoint for displaying the fan speed stage | | Input | `xDsplSymbPresen` | `BOOL` | FALSE | Display of the symbols for presence (= TRUE) or absence (= FALSE) | | Input | `xDsplSymbHeat` | `BOOL` | FALSE | Display of the symbol for heating operation (TRUE = display) | | Input | `xDsplSymbCool` | `BOOL` | FALSE | Display of the symbol for cooling operation (TRUE = display) | | Input | `xDsplSymbFan` | `BOOL` | FALSE | Display of the symbol for the fan (TRUE = display) | | Input | `xDsplSymbAlWindo` | `BOOL` | FALSE | Display of the window alarm symbol (TRUE = display) | | Input | `xDsplSymbAlRainf` | `BOOL` | FALSE | Display of the rain alarm symbol (TRUE = display) | | Input | `xDsplSymbAlStorm` | `BOOL` | FALSE | Display of the wind alarm symbol (TRUE = display) | | Input | `xDsplSymbAlAlarm` | `BOOL` | FALSE | Display of the alarm symbol (TRUE = display) | | Input | `xDsplSymbNotDrop` | `BOOL` | FALSE | Display of the crossed-out drop symbol (TRUE = display) | | Input | `xDsplSymbClock` | `BOOL` | FALSE | Display of the clock symbol (TRUE = display) | | Input | `xBuzzer_Alarm` | `BOOL` | FALSE | Enable / disable the alarm tone (buzzer) (TRUE = enable) | | Input | `xResetDevice` | `BOOL` | FALSE | Reset of the device (on every rising edge) | | Inout | `ModbusClient` | `ModbusClientBase` | | Client of the device | | Output | `rSetpTemp` | `REAL` | | Set temperature (degrees Celsius) | | Output | `rSetpTempOffset` | `REAL` | |

Setpoint temperature offset (Kelvin)(rSetpTempOffset:=
rSetpTemp - rSetpTempBase)

| | Output | `rRoomTemp` | `REAL` | | Room temperature in XXX.X degrees Celsius | | Output | `rExtTemp` | `REAL` | | External temperature in XXX.X degrees Celsius | | Output | `rRelHumidity` | `REAL` | | Relative room humidity in XXX.X % | | Output | `rDewPointTemp` | `REAL` | | Dew point temperature in XXX.X degrees Celsius | | Output | `rSupplyVolt` | `REAL` | | Supply voltage in XXX.X Volts | | Output | `rCpuTemp` | `REAL` | | CPU temperature in XXX.X degrees Celsius | | Output | `rCpuVolt` | `REAL` | | CPU voltage in XXX.X Volts | | Output | `sSerialNum` | `STRING` | | Serial number of the device | | Output | `sProductCode` | `STRING` | | Product code of the device (e.g. `24X`) | | Output | `wDeviceMode` | `WORD` | | Operating mode of the device | | Output | `xButtonPresence` | `BOOL` | FALSE | Pressing the presence button (1s pulse) | | Output | `xButtonTempUp` | `BOOL` | |

Pressing the button to increase the set temperature (
1s pulse)

| | Output | `xButtonTempDown` | `BOOL` | |

Pressing the button to decrease the set temperature (
1s pulse)

| | Output | `xButtonFanUp` | `BOOL` | FALSE |

Pressing the button to increase the fan speed stage(
1 s pulse)

| | Output | `xButtonFanDown` | `BOOL` | FALSE |

Pressing the button to decrease the fan speed stage of the
fan (1 s pulse)

| | Output | `xStateExtBut0` | `BOOL` | | State of external input 0 | | Output | `xStateExtBut1` | `BOOL` | | State of external input 1 | | Output | `xStateExtBut2` | `BOOL` | | State of external input 2 | | Output | `xStateExtBut3` | `BOOL` | | State of external input 3 | | Output | `xAlarm` | `BOOL` | FALSE | Collective fault (TRUE = fault) | | Output | `xAlarmCom` | `BOOL` | FALSE | Collective fault - communication (TRUE = fault) | | Output | `eErrorCodeCom` | ModbusErrorCode | | Error code - communication (0 = no error) | | Output | `eErrorCodeDev` | SPLUSS\_ERROR\_CODE\_TYPE\_2 | | Error code - device (0 = no error) | | Output | `xBusy` | `BOOL` | | Communication indicator (TRUE = communication) | | Input Const | `eColorScheme` | SPLUSS\_LCD\_COLOR\_SCHEME | SPLUSS\_LCD\_COLOR\_SCHEME.WHITE | Number of the color scheme (1 = white, 1-7 = valid numbers) | | Input Const | `wPinCodeEndUser` | `WORD` | 3333 | PIN code for the user level (0 = no code, 0001 - 9999 valid code) | | Input Const | `wPinCodeAdmin` | `WORD` | 7458 | PIN code for the administrator level (0 = no code, 0001 - 9999 valid code) | | Input Const | `rSetpTempVariat` | `REAL` | 0.5 | Variation - set temperature (degrees Celsius) | | Input Const | `rSetpTempMax` | `REAL` | 26.0 | Absolute maximum value - setpoint temperature (degrees Celsius) | | Input Const | `rSetpTempMin` | `REAL` | 18.0 | Absolute minimum value - setpoint temperature (degrees Celsius) | | Input Const | `eSetpTempMode` | RYMASKON\_2XX\_SETP\_TEMP\_MODE | RYMASKON\_2XX\_SETP\_TEMP\_MODE.MANUALLY | | | Input Const | `tTimeUpdateConfig` | `TIME` | TIME#0ms |

Update interval for the processes influenced by the input
xUpdateConfig influenced

| | Input Const | `tTimeUpdateSetp` | `TIME` | TIME#45s0ms |

Update interval for the processes influenced by the input
xUpdateSetp influenced

| | Input Const | `tTimeUpdateStates` | `TIME` | TIME#500ms |

Update interval for the processes influenced by the input
xUpdateStates influenced

| | Input Const | `tTimeUpdateActual` | `TIME` | TIME#3s0ms |

Update interval for the processes influenced by the input
xUpdateActual influenced

|
