# SetPointSlide

## `SetPointSlide` (FB)

FUNCTION\_BLOCK SetPointSlide

### Short description

> Generation of a setpoint temperature depending on the outside temperature\
> Principle: Linear shift\
> Typical application: Adjustment of a room setpoint temperature in summer operation (energy saving)

### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-21d58b0be6fbf06aa032a7f41e4b6231ea11819a%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Interfaces

#### Inputs

| Name       | Data type | Value range | Initial value | Function                    |
| ---------- | --------- | ----------- | ------------- | --------------------------- |
| *rOutTemp* | REAL      |             | 0             | Current outside temperature |

#### Outputs

| Name          | Data type | Value range | Initial value | Function                                            |
| ------------- | --------- | ----------- | ------------- | --------------------------------------------------- |
| *rSetPoint*   | REAL      |             |               | Current setpoint temperature                        |
| *bOverThrust* | BOOL      |             |               | Display - shift (FALSE = not active, TRUE = active) |

#### Setpoints / Parameters

| Name          | Data type | Value range               | Initial value | Function                                                                                                    |
| ------------- | --------- | ------------------------- | ------------- | ----------------------------------------------------------------------------------------------------------- |
| **rDeadZone** | REAL      |                           | 2             | Dead zone between the switch-on and switch-off point for the output *bOverThrust* at the start of the shift |
| **rMaxW**     | REAL      |                           | 25.0          | Maximum absolute setpoint temperature                                                                       |
| **rW2**       | REAL      |                           | 25.0          | Setpoint temperature at outside temperature point 2                                                         |
| **rTo2**      | REAL      |                           | 40.0          | Outside temperature at outside temperature point 2                                                          |
| **rW1**       | REAL      |                           | 20.0          | Setpoint temperature at outside temperature point 1                                                         |
| **rTo1**      | REAL      |                           | 30.0          | Outside temperature at outside temperature point 1                                                          |
| **rManValue** | REAL      |                           | 0.0           | Manual override: Manual value                                                                               |
| **eManModeN** | eMANNUM   | eMANNUM.Auto, eMANNUM.Man |               | Manual override: Operating mode                                                                             |

### Functional description

#### General

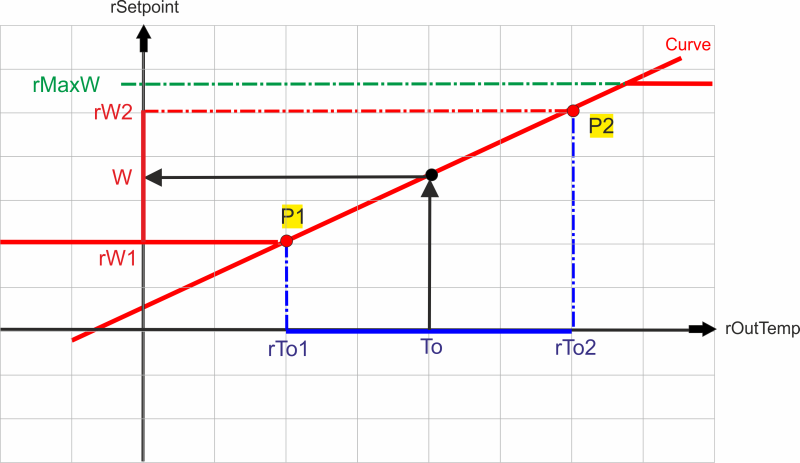

This function block is used to generate a setpoint temperature *rSetPoint* depending on the current outside temperature *rOutTemp*.\
The assignment is established by a linear function defined by two points (outside temperature point 2: **rTo2** and **rW2**, outside temperature point 1: **rTo1** and **rW1**) defined linear function.\
The setpoint temperature *rSetPoint* is limited upwards by the absolute maximum value **rMaxW** limited.\
The setpoint temperature *rSetPoint* is limited downwards by the setpoint temperature at outside temperature point 1 **rW1** limited.\
The setpoint temperature *rSetPoint* can be fixed by the operating mode **eManModeN** (**eManModeN** = eMANNUM.Man) to the fixed value **rManValue** be fixed.\
Each time the operating mode is switched to manual operation (**eManModeN** = eMANNUM.Man) the manual value **rManValue** is replaced by the current setpoint temperature *rSetPoint* replaced.\
If the outside temperature at outside temperature point 1 approaches **rTo1** the outside temperature at outside temperature point 2 **rTo2** to less than 0.5°C, then outside temperature point 1 **rTo1** is automatically corrected to a difference of 0.5°C (to avoid curves that are too steep).\
Outside temperature point 1 **rTo1** is therefore always numerically smaller than outside temperature point 2 **rTo2**.\
\
A temperature difference of 6°C between the outside temperature and the setpoint temperature is most commonly used.

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-66b13b1df14ffaecc8758a1e60bdde33fa02d07d%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Display - shift *bOverThrust*

| Condition                               | *bOverThrust* | Notes                        |
| --------------------------------------- | ------------- | ---------------------------- |
| *rOutTemp* > **rTo1**                   | TRUE          | Setpoint shift is active     |
| *rOutTemp* < (**rTo1** - **rDeadZone**) | FALSE         | Setpoint shift is not active |

### CODESYS

InOut:

| Scope       | Name          | Type    | Initial      |
| ----------- | ------------- | ------- | ------------ |
| Input       | `rOutTemp`    | `REAL`  | 0            |
| Input Const | `rDeadZone`   | `REAL`  | 2            |
| Input Const | `rMaxW`       | `REAL`  | 25           |
| Input Const | `rW2`         | `REAL`  | 25           |
| Input Const | `rTo2`        | `REAL`  | 40           |
| Input Const | `rW1`         | `REAL`  | 20           |
| Input Const | `rTo1`        | `REAL`  | 30           |
| Input Const | `rManValue`   | `REAL`  | 0            |
| Input Const | `eManModeN`   | eManNum | eManNum.Auto |
| Output      | `rSetpoint`   | `REAL`  |              |
| Output      | `bOverthrust` | `BOOL`  |              |


---
