# Curve\_20XY\_Real\_Real

## `Curve_20XY_Real_Real` (FB)

FUNCTION\_BLOCK Curve\_20XY\_Real\_Real

### Short description

> Input of 20 value pairs (support points each with an X and Y value)\
> Boundary conditions:
>
> 1. The X values must be consecutively either strictly increasing or strictly decreasing
> 2. Each X value may occur only once
> 3. Two adjacent support points are each connected by a straight line\
>    \
>    Typical application: calculation of the power of a heat pump depending on the outside temperature

### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-ff0933d186153f822aff65c2b4510e5a3eb9437f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Interfaces

#### Inputs

| Name                   | Data type | Value range | Initial value | Function                            |
| ---------------------- | --------- | ----------- | ------------- | ----------------------------------- |
| <p><br>rInputValue</p> | REAL      |             | 0             | Current value of the input variable |

#### Outputs

| Name                     | Data type                       | Value range | Initial value                             | Function                                        |
| ------------------------ | ------------------------------- | ----------- | ----------------------------------------- | ----------------------------------------------- |
| <p><br>rOutputValue</p>  | REAL                            |             | 0.0                                       | Current value of the output variable            |
| <p><br>eOrderXValues</p> | eCurve\_20XY\_Real\_Real\_Order |             | eCurve\_20XY\_Real\_Real\_Order.Invalid   | Order of the X values (increasing / decreasing) |
| <p><br>eError</p>        | eCurve\_20XY\_Real\_Real\_Error |             | eCurve\_20XY\_Real\_Real\_Error.No\_Error | Cause of error                                  |
| <p><br>xError</p>        | BOOL                            |             | FALSE                                     | Error state (TRUE = error)                      |

#### Setpoints / Parameters

| Name                           | Data type | Value range | Initial value | Function                                                 |
| ------------------------------ | --------- | ----------- | ------------- | -------------------------------------------------------- |
| <p><br>rOutputValue\_Subst</p> | REAL      |             | -1000         | Substitute value of the output variable in case of error |
| <p><br>rOutputValue\_Min</p>   | REAL      |             | 0             | Absolute minimum value of the output variable            |
| <p><br>rOutputValue\_Max</p>   | REAL      |             | 100           | Absolute maximum value of the output variable            |
| <p><br>rSP1\_X</p>             | REAL      |             | 1             | Support point 1 - X value                                |
| <p><br>rSP1\_Y</p>             | REAL      |             | 2             | Support point 1 - Y value                                |
| <p><br>rSP2\_X</p>             | REAL      |             | 2             | Support point 2 - X value                                |
| <p><br>rSP2\_Y</p>             | REAL      |             | 4             | Support point 2 - Y value                                |
| <p><br>rSP3\_X</p>             | REAL      |             | 3             | Support point 3 - X value                                |
| <p><br>rSP3\_Y</p>             | REAL      |             | 6             | Support point 3 - Y value                                |
| <p><br>rSP4\_X</p>             | REAL      |             | 4             | Support point 4 - X value                                |
| <p><br>rSP4\_Y</p>             | REAL      |             | 8             | Support point 4 - Y value                                |
| <p><br>rSP5\_X</p>             | REAL      |             | 5             | Support point 5 - X value                                |
| <p><br>rSP5\_Y</p>             | REAL      |             | 10            | Support point 5 - Y value                                |
| <p><br>rSP6\_X</p>             | REAL      |             | 6             | Support point 6 - X value                                |
| <p><br>rSP6\_Y</p>             | REAL      |             | 12            | Support point 6 - Y value                                |
| <p><br>rSP7\_X</p>             | REAL      |             | 7             | Support point 7 - X value                                |
| <p><br>rSP7\_Y</p>             | REAL      |             | 14            | Support point 7 - Y value                                |
| <p><br>rSP8\_X</p>             | REAL      |             | 8             | Support point 8 - X value                                |
| <p><br>rSP8\_Y</p>             | REAL      |             | 16            | Support point 8 - Y value                                |
| <p><br>rSP9\_X</p>             | REAL      |             | 9             | Support point 9 - X value                                |
| <p><br>rSP9\_Y</p>             | REAL      |             | 18            | Support point 9 - Y value                                |
| <p><br>rSP10\_X</p>            | REAL      |             | 10            | Support point 10 - X value                               |
| <p><br>rSP10\_Y</p>            | REAL      |             | 20            | Support point 10 - Y value                               |
| <p><br>rSP11\_X</p>            | REAL      |             | 11            | Support point 11 - X value                               |
| <p><br>rSP11\_Y</p>            | REAL      |             | 22            | Support point 11 - Y value                               |
| <p><br>rSP12\_X</p>            | REAL      |             | 12            | Support point 12 - X value                               |
| <p><br>rSP12\_Y</p>            | REAL      |             | 24            | Support point 12 - Y value                               |
| <p><br>rSP13\_X</p>            | REAL      |             | 13            | Support point 13 - X value                               |
| <p><br>rSP13\_Y</p>            | REAL      |             | 26            | Support point 13 - Y value                               |
| <p><br>rSP14\_X</p>            | REAL      |             | 14            | Support point 14 - X value                               |
| <p><br>rSP14\_Y</p>            | REAL      |             | 28            | Support point 14 - Y value                               |
| <p><br>rSP15\_X</p>            | REAL      |             | 15            | Support point 15 - X value                               |
| <p><br>rSP15\_Y</p>            | REAL      |             | 30            | Support point 15 - Y value                               |
| <p><br>rSP16\_X</p>            | REAL      |             | 16            | Support point 16 - X value                               |
| <p><br>rSP16\_Y</p>            | REAL      |             | 32            | Support point 16 - Y value                               |
| <p><br>rSP17\_X</p>            | REAL      |             | 17            | Support point 17 - X value                               |
| <p><br>rSP17\_Y</p>            | REAL      |             | 34            | Support point 17 - Y value                               |
| <p><br>rSP18\_X</p>            | REAL      |             | 18            | Support point 18 - X value                               |
| <p><br>rSP18\_Y</p>            | REAL      |             | 36            | Support point 18 - Y value                               |
| <p><br>rSP19\_X</p>            | REAL      |             | 19            | Support point 19 - X value                               |
| <p><br>rSP19\_Y</p>            | REAL      |             | 38            | Support point 19 - Y value                               |
| <p><br>rSP20\_X</p>            | REAL      |             | 20            | Support point 20 - X value                               |
| <p><br>rSP20\_Y</p>            | REAL      |             | 40            | Support point 20 - Y value                               |

### Functional description

\
The output variable **rOutputValue** is cyclically calculated based on the input variable **rInputValue** and the characteristic curve defined by the 20 support points, provided no error exists (xError = FALSE).

It is limited by the adjustable absolute minimum (rOutputValue\_Min) and maximum values (rOutputValue\_Max).\
In case of error (xError = TRUE), the fixed substitute value is assigned to the output variable ‘rOutputValue’ **rOutputValue\_Subst** is output.\
\
The X values of the 20 support points must meet the following boundary conditions:\
\
1\) The X values must be consecutively either strictly increasing or strictly decreasing\
2\) Each X value may occur only once\
3\) Two adjacent support points are each connected by a straight line\
\
The characteristic curve is updated once directly after initialization or once after each change to the support points.\
\
In case of error (same X values, X values not strictly increasing / decreasing), a corresponding cause of error is displayed at the output **eError** is shown.\
At the same time, the fixed substitute value **rOutputValue\_Subst** is output.\
The output **xError** is active (= TRUE), if an error is signaled at the output **eError** .

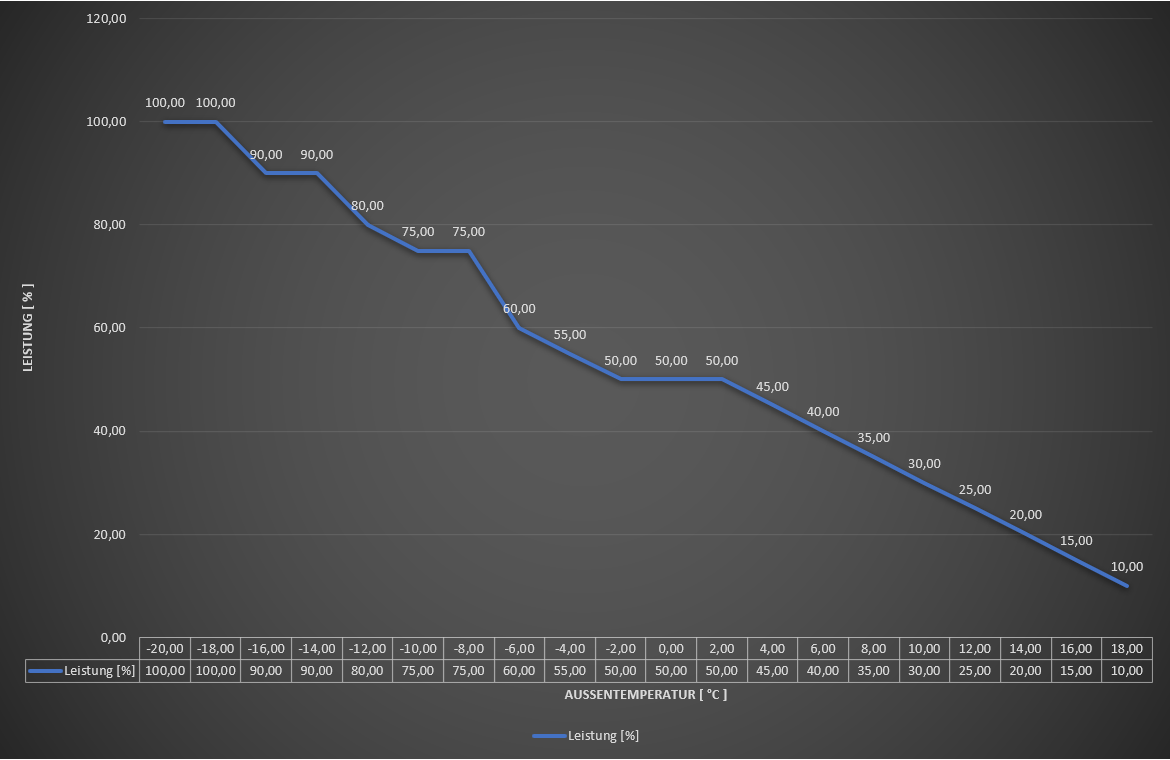

### Representation of an example characteristic curve

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-90a74e912fc314dd713279e4d08705072cff68c2%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### CODESYS

InOut:

| Scope       | Name                 | Type                            | Initial                                   |
| ----------- | -------------------- | ------------------------------- | ----------------------------------------- |
| Input       | `rInputValue`        | `REAL`                          | 0                                         |
| Output      | `rOutputValue`       | `REAL`                          | 0                                         |
| Output      | `eOrderXValues`      | eCurve\_20XY\_Real\_Real\_Order | eCurve\_20XY\_Real\_Real\_Order.Invalid   |
| Output      | `eError`             | eCurve\_20XY\_Real\_Real\_Error | eCurve\_20XY\_Real\_Real\_Error.No\_Error |
| Output      | `xError`             | `BOOL`                          | FALSE                                     |
| Input Const | `rSP20_Y`            | `REAL`                          | 40                                        |
| Input Const | `rSP20_X`            | `REAL`                          | 20.0                                      |
| Input Const | `rSP19_Y`            | `REAL`                          | 38.0                                      |
| Input Const | `rSP19_X`            | `REAL`                          | 19.0                                      |
| Input Const | `rSP18_Y`            | `REAL`                          | 36.0                                      |
| Input Const | `rSP18_X`            | `REAL`                          | 18.0                                      |
| Input Const | `rSP17_Y`            | `REAL`                          | 34.0                                      |
| Input Const | `rSP17_X`            | `REAL`                          | 17.0                                      |
| Input Const | `rSP16_Y`            | `REAL`                          | 32.0                                      |
| Input Const | `rSP16_X`            | `REAL`                          | 16.0                                      |
| Input Const | `rSP15_Y`            | `REAL`                          | 30.0                                      |
| Input Const | `rSP15_X`            | `REAL`                          | 15.0                                      |
| Input Const | `rSP14_Y`            | `REAL`                          | 28.0                                      |
| Input Const | `rSP14_X`            | `REAL`                          | 14.0                                      |
| Input Const | `rSP13_Y`            | `REAL`                          | 26.0                                      |
| Input Const | `rSP13_X`            | `REAL`                          | 13.0                                      |
| Input Const | `rSP12_Y`            | `REAL`                          | 24.0                                      |
| Input Const | `rSP12_X`            | `REAL`                          | 12.0                                      |
| Input Const | `rSP11_Y`            | `REAL`                          | 22.0                                      |
| Input Const | `rSP11_X`            | `REAL`                          | 11.0                                      |
| Input Const | `rSP10_Y`            | `REAL`                          | 20.0                                      |
| Input Const | `rSP10_X`            | `REAL`                          | 10.0                                      |
| Input Const | `rSP9_Y`             | `REAL`                          | 18.0                                      |
| Input Const | `rSP9_X`             | `REAL`                          | 9.0                                       |
| Input Const | `rSP8_Y`             | `REAL`                          | 16.0                                      |
| Input Const | `rSP8_X`             | `REAL`                          | 8.0                                       |
| Input Const | `rSP7_Y`             | `REAL`                          | 14.0                                      |
| Input Const | `rSP7_X`             | `REAL`                          | 7.0                                       |
| Input Const | `rSP6_Y`             | `REAL`                          | 12.0                                      |
| Input Const | `rSP6_X`             | `REAL`                          | 6.0                                       |
| Input Const | `rSP5_Y`             | `REAL`                          | 10.0                                      |
| Input Const | `rSP5_X`             | `REAL`                          | 5.0                                       |
| Input Const | `rSP4_Y`             | `REAL`                          | 8.0                                       |
| Input Const | `rSP4_X`             | `REAL`                          | 4.0                                       |
| Input Const | `rSP3_Y`             | `REAL`                          | 6.0                                       |
| Input Const | `rSP3_X`             | `REAL`                          | 3.0                                       |
| Input Const | `rSP2_Y`             | `REAL`                          | 4.0                                       |
| Input Const | `rSP2_X`             | `REAL`                          | 2.0                                       |
| Input Const | `rSP1_Y`             | `REAL`                          | 2.0                                       |
| Input Const | `rSP1_X`             | `REAL`                          | 1.0                                       |
| Input Const | `rOutputValue_Max`   | `REAL`                          | 100.0                                     |
| Input Const | `rOutputValue_Min`   | `REAL`                          | 0.0                                       |
| Input Const | `rOutputValue_Subst` | `REAL`                          | -1000.0                                   |


---
