# Curve\_10XY\_Real\_Real

## `Curve_10XY_Real_Real` (FB)

FUNCTION\_BLOCK Curve\_10XY\_Real\_Real

### Short description

> Input of 10 pairs of values (support points each with an X and Y value)\
> Boundary conditions:
>
> * The X values must continuously be either increasing or decreasing
> * Two consecutive X values must not be equal
>
> \
> Typical application: transfer of a characteristic curve with 10 support points

### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-4f4437a71ddd47874c7c0109b485082053ccb32c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Interfaces

#### Outputs

| Name                          | Data type           | Value range | Initial value | Function                                                                         |
| ----------------------------- | ------------------- | ----------- | ------------- | -------------------------------------------------------------------------------- |
| <p><br>arData\_Real\_Real</p> | stCurve\_Real\_Real |             |               | Array with the support points (data type X value: REAL, data type Y value: REAL) |
| <p><br>xValidData</p>         | BOOL                |             | FALSE         | Validity of the data in the output array (TRUE = valid)                          |
| <p><br><br>xError</p>         | BOOL                |             | FALSE         | Error state of the input support points (TRUE = error)                           |

#### Setpoints / Parameters

| Name                | Data type | Value range | Initial value | Function                   |
| ------------------- | --------- | ----------- | ------------- | -------------------------- |
| <p><br>rSP1\_X</p>  | REAL      |             | 1             | Support point 1 - X value  |
| <p><br>rSP1\_Y</p>  | REAL      |             | 1             | Support point 1 - Y value  |
| <p><br>rSP2\_X</p>  | REAL      |             | 2             | Support point 2 - X value  |
| <p><br>rSP2\_Y</p>  | REAL      |             | 2             | Support point 2 - Y value  |
| <p><br>rSP3\_X</p>  | REAL      |             | 3             | Support point 3 - X value  |
| <p><br>rSP3\_Y</p>  | REAL      |             | 3             | Support point 3 - Y value  |
| <p><br>rSP4\_X</p>  | REAL      |             | 4             | Support point 4 - X value  |
| <p><br>rSP4\_Y</p>  | REAL      |             | 4             | Support point 4 - Y value  |
| <p><br>rSP5\_X</p>  | REAL      |             | 5             | Support point 5 - X value  |
| <p><br>rSP5\_Y</p>  | REAL      |             | 5             | Support point 5 - Y value  |
| <p><br>rSP6\_X</p>  | REAL      |             | 6             | Support point 6 - X value  |
| <p><br>rSP6\_Y</p>  | REAL      |             | 6             | Support point 6 - Y value  |
| <p><br>rSP7\_X</p>  | REAL      |             | 7             | Support point 7 - X value  |
| <p><br>rSP7\_Y</p>  | REAL      |             | 7             | Support point 7 - Y value  |
| <p><br>rSP8\_X</p>  | REAL      |             | 8             | Support point 8 - X value  |
| <p><br>rSP8\_Y</p>  | REAL      |             | 8             | Support point 8 - Y value  |
| <p><br>rSP9\_X</p>  | REAL      |             | 9             | Support point 9 - X value  |
| <p><br>rSP9\_Y</p>  | REAL      |             | 9             | Support point 9 - Y value  |
| <p><br>rSP10\_X</p> | REAL      |             | 10            | Support point 10 - X value |
| <p><br>rSP10\_Y</p> | REAL      |             | 10            | Support point 10 - Y value |

### Functional description

\
The array at output arData\_Real\_Real is filled with the entered data of the 10 support points, if<br>

1. there is no active error in the input of the support points (xError = FALSE) AND
2. a change in value has occurred in the input data

\
The output **xValidData** is active (= TRUE) if the data in the output array is valid. The data in the output array can differ from the entered data if the entered data contains an error.\
\
The following boundary conditions apply when defining the X values:\
\
1\) The X values must be continuously either ascending or descending\
2\) Two consecutive X values must not be equal\
\
The output **xError** is active (= TRUE) if at least one of these two conditions is not met.\
It is not active (= FALSE) if both conditions are met.

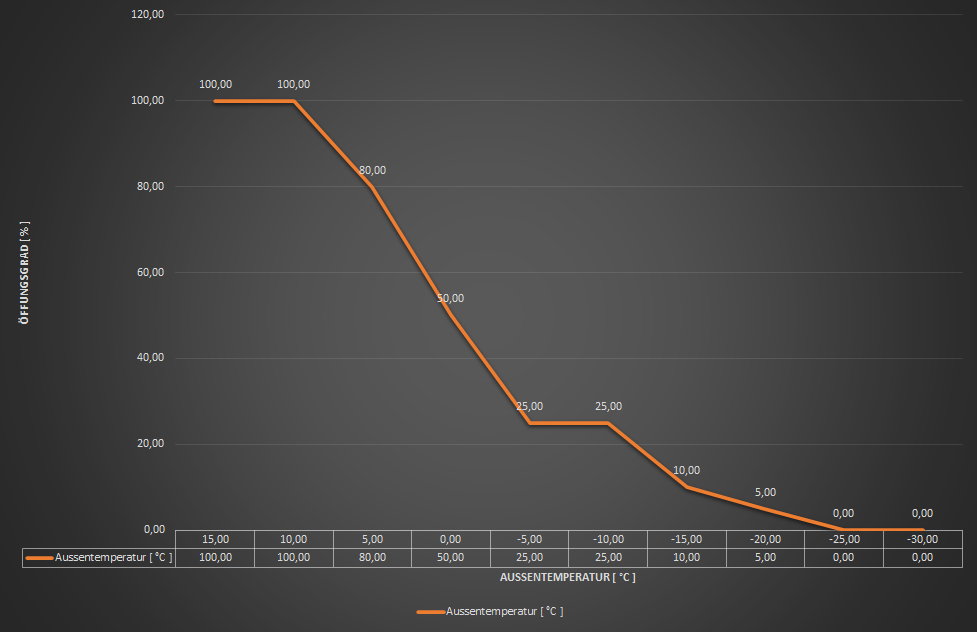

### Representation of an example characteristic curve

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-f7782fcac864899ef062e0f3d8b0a0ef47982609%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### CODESYS

InOut:

| Scope       | Name               | Type                                  | Initial |
| ----------- | ------------------ | ------------------------------------- | ------- |
| Output      | `arData_Real_Real` | ARRAY \[1..10] OF stCurve\_Real\_Real |         |
| Output      | `xValidData`       | `BOOL`                                | FALSE   |
| Output      | `xError`           | `BOOL`                                | FALSE   |
| Input Const | `rSP10_Y`          | `REAL`                                | 0.0     |
| Input Const | `rSP10_X`          | `REAL`                                | 26.0    |
| Input Const | `rSP9_Y`           | `REAL`                                | 100.0   |
| Input Const | `rSP9_X`           | `REAL`                                | 25.0    |
| Input Const | `rSP8_Y`           | `REAL`                                | 100.0   |
| Input Const | `rSP8_X`           | `REAL`                                | 15.0    |
| Input Const | `rSP7_Y`           | `REAL`                                | 75.0    |
| Input Const | `rSP7_X`           | `REAL`                                | 14.0    |
| Input Const | `rSP6_Y`           | `REAL`                                | 75.0    |
| Input Const | `rSP6_X`           | `REAL`                                | 8.0     |
| Input Const | `rSP5_Y`           | `REAL`                                | 50.0    |
| Input Const | `rSP5_X`           | `REAL`                                | 7.0     |
| Input Const | `rSP4_Y`           | `REAL`                                | 50.0    |
| Input Const | `rSP4_X`           | `REAL`                                | -4.0    |
| Input Const | `rSP3_Y`           | `REAL`                                | 25.0    |
| Input Const | `rSP3_X`           | `REAL`                                | -5.0    |
| Input Const | `rSP2_Y`           | `REAL`                                | 25.0    |
| Input Const | `rSP2_X`           | `REAL`                                | -13.0   |
| Input Const | `rSP1_Y`           | `REAL`                                | 0.0     |
| Input Const | `rSP1_X`           | `REAL`                                | -14.0   |


---
