# HeatCurve4P\_DN

## `HeatCurve4P_DN` (FB)

FUNCTION\_BLOCK HeatCurve4P\_DN

### Short description

> Heating curve with four outdoor temperature points and two curves (night, day).

### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-045548764f294fb78f8b63ed3278cfa9ac8ee973%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Interfaces

#### Inputs

| Name       | Data type | Value range      | Initial value | Function                                              |
| ---------- | --------- | ---------------- | ------------- | ----------------------------------------------------- |
| *rOutTemp* | REAL      | -50.0 … +50.0 °C | 0             | Outdoor temperature for calculating the curves        |
| *xDay*     | BOOL      |                  |               | Operating mode (FALSE = night mode / TRUE = day mode) |

#### Outputs

| Name          | Data type | Value range | Initial value | Function                                        |
| ------------- | --------- | ----------- | ------------- | ----------------------------------------------- |
| *rSupplyTemp* | REAL      |             | 0.0 °C        | Supply setpoint temperature of the active curve |

#### Setpoints / Parameters

| Name                    | Data type | Value range | Initial value | Function                                                                         |
| ----------------------- | --------- | ----------- | ------------- | -------------------------------------------------------------------------------- |
| **eManModeN**           | eManNum   |             | eManNum.Auto  | Operating mode for the supply setpoint temperature *rSupplyTemp*                 |
| **rManValue**           | REAL      |             | 0.0 °C        | Manual value for mode eManNum.Man                                                |
| **rSupplyTempMin**      | REAL      |             | 20.0 °C       | Absolute minimum supply setpoint temperature                                     |
| **rSupplyTempMax**      | REAL      |             | 70.0 °C       | Absolute maximum supply setpoint temperature                                     |
| **rTo1**                | REAL      |             | -15.0 °C      | Outdoor temperature for point 1                                                  |
| **rW1Day**              | REAL      |             | 70.0 °C       | Supply setpoint temperature for outdoor temperature point 1 - day curve          |
| **rW1Night**            | REAL      |             | 65.0 °C       | Supply setpoint temperature for outdoor temperature point 1 - night curve        |
| **rTo2**                | REAL      |             | -5.0 °C       | Outdoor temperature for point 2                                                  |
| **rW2Day**              | REAL      |             | 60.0 °C       | Supply setpoint temperature for outdoor temperature point 2 - day curve          |
| **rW2Night**            | REAL      |             | 55.0 °C       | Supply setpoint temperature for outdoor temperature point 2 - night curve        |
| **rTo3**                | REAL      |             | 5.0 °C        | Outdoor temperature for point 3                                                  |
| **rW3Day**              | REAL      |             | 50.0 °C       | Supply setpoint temperature for outdoor temperature point 3 - day curve          |
| **rW3Night**            | REAL      |             | 45.0 °C       | Supply setpoint temperature for outdoor temperature point 3 - night curve        |
| **rTo4**                | REAL      |             | 15.0 °C       | Outdoor temperature for point 4                                                  |
| **rW4Day**              | REAL      |             | 40.0 °C       | Supply setpoint temperature for outdoor temperature point 4 - day curve          |
| **rW4Night**            | REAL      |             | 35.0 °C       | Supply setpoint temperature for outdoor temperature point 4 - night curve        |
| **rButtonJump**         | REAL      |             | 1.0 °C        | Function not yet implemented.                                                    |
| **rSupplyTempMaxScale** | REAL      |             | 90.0 °C       | Maximum temperature for scaling the Y-axis (VISU) Slider displayed only at 90°C! |
| **rBorderDistance**     | REAL      |             | 3.0 °C        | Edge distance from the right/left edge in degrees Celsius for the X-axis (VISU)  |

### Functional description

\

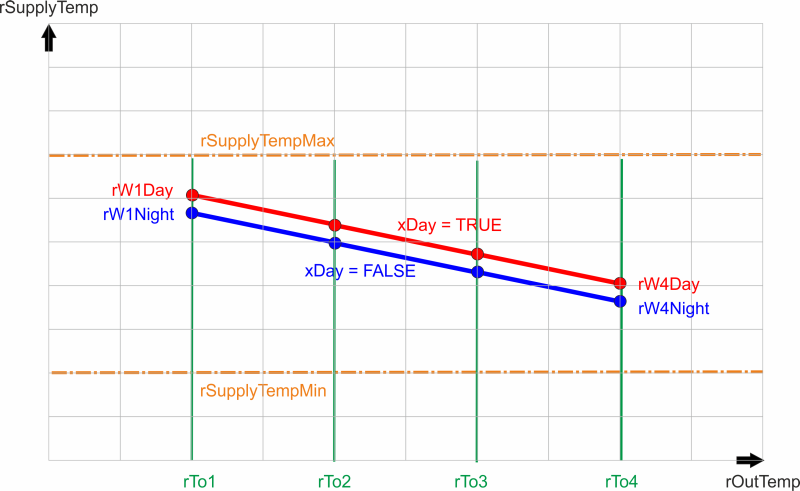

The supply setpoint temperature **rSupplyTemp** is determined depending on the current outdoor temperature **rOutTemp** and the selected curve (night curve: **xDay** = FALSE // day curve: **xDay** = TRUE) is calculated.\
The supply setpoint temperature \*rSupplyTemp\* is limited by adjustable absolute minimum (**rSupplyTempMin**) and maximum values (**rSupplyTempMax**) are limited.\
\
The curves are defined and adjustable by four outdoor temperature points each (separately for the night and day curve).\
Each point is defined by an outdoor temperature and an assigned supply setpoint temperature.\
The four outdoor temperature points of a curve are connected by straight lines.

{% hint style="danger" %}
Restriction

To4 > rTo3 > rTo2 > rTo1
{% endhint %}

\
The parameter **eManModeN** allows switching of the supply setpoint temperature **rSupplyTemp** from automatic to manual mode and vice versa.\
In manual mode, the supply setpoint temperature \*rSupplyTemp\* takes the value of the parameter **rManValue.**

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-d54301a5d2b01a706e240053fb87562b92326c93%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

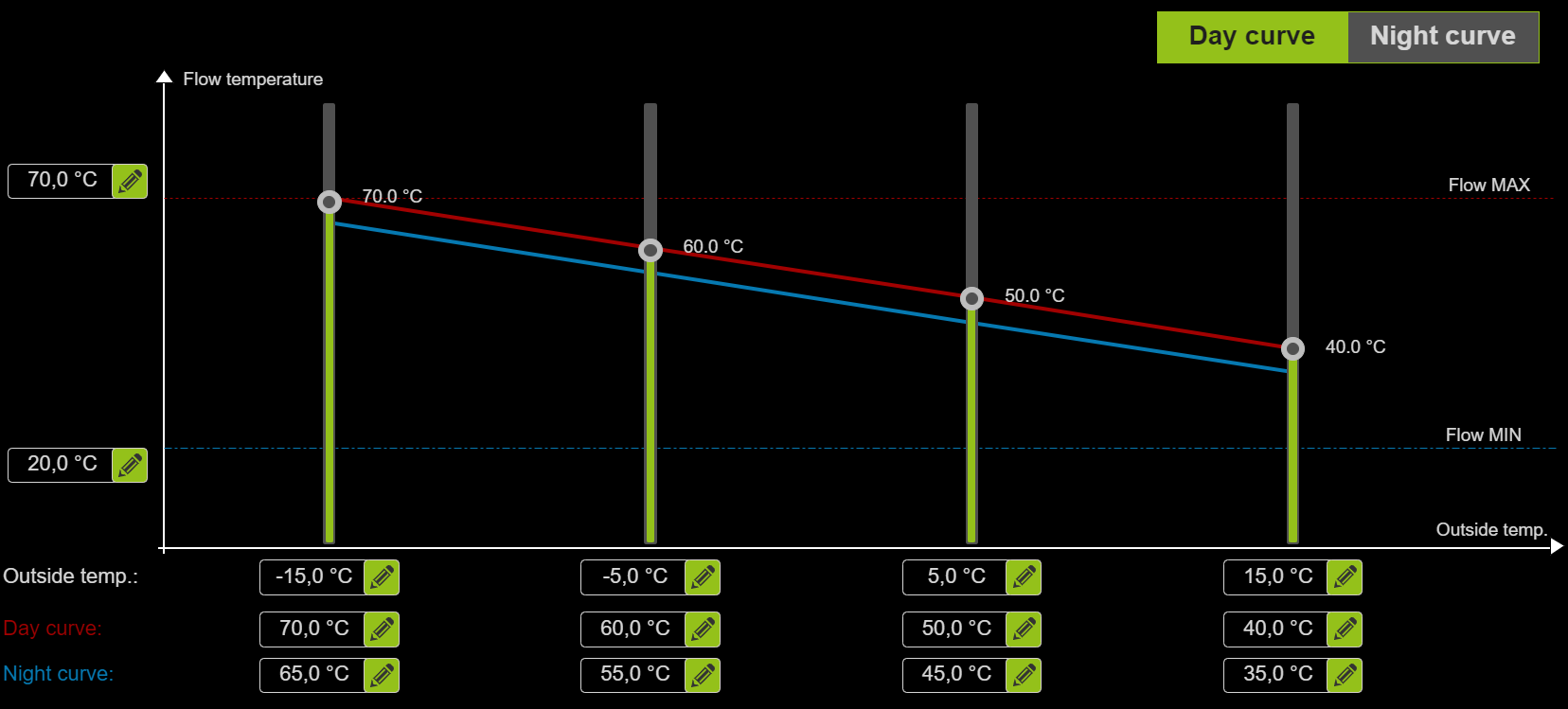

### Visualization

Suitable visualization element from the HVACV Visu Library: **HeatCurve4P\_DN**

#### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-f3f3b11a9e4b6cbc32bb57063feadb3bbd2e3705%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Interfaces visualization element

| Name                    | Data type       | Type         | Initial value | Function                                                              |
| ----------------------- | --------------- | ------------ | ------------- | --------------------------------------------------------------------- |
| **FB\_HeatCurve4P\_DN** | HeatCurve4P\_DN | VAR\_IN\_OUT |               | Enter FB instance HVAC.HeatCurve4P\_DN here, e.g. PRG.HeatCurve4P\_DN |

{% hint style="info" %}
Note: VAR\_IN\_OUT interfaces must be assigned; VAR\_INPUT is optional.
{% endhint %}

### CODESYS

InOut:

| Scope       | Name                  | Type    | Initial      |
| ----------- | --------------------- | ------- | ------------ |
| Input       | `rOutTemp`            | `REAL`  | 0            |
| Input       | `xDay`                | `BOOL`  |              |
| Input Const | `rBorderDistance`     | `REAL`  | 3            |
| Input Const | `rSupplyTempMaxScale` | `REAL`  | 90           |
| Input Const | `rButtonJump`         | `REAL`  | 1            |
| Input Const | `rW4Night`            | `REAL`  | 35           |
| Input Const | `rW4Day`              | `REAL`  | 40           |
| Input Const | `rTo4`                | `REAL`  | 15           |
| Input Const | `rW3Night`            | `REAL`  | 45           |
| Input Const | `rW3Day`              | `REAL`  | 50           |
| Input Const | `rTo3`                | `REAL`  | 5            |
| Input Const | `rW2Night`            | `REAL`  | 55           |
| Input Const | `rW2Day`              | `REAL`  | 60           |
| Input Const | `rTo2`                | `REAL`  | -5           |
| Input Const | `rW1Night`            | `REAL`  | 65           |
| Input Const | `rW1Day`              | `REAL`  | 70           |
| Input Const | `rTo1`                | `REAL`  | -15          |
| Input Const | `rSupplyTempMax`      | `REAL`  | 70           |
| Input Const | `rSupplyTempMin`      | `REAL`  | 20           |
| Input Const | `rManValue`           | `REAL`  | 0            |
| Input Const | `eManModeN`           | eManNum | eManNum.Auto |
| Output      | `rSupplyTemp`         | `REAL`  | 0            |


---
