# ChangeStateUpDown

## `ChangeStateUpDown` (FB)

FUNCTION\_BLOCK ChangeStateUpDown

### Short description

> Switching between freely definable states (UP and DOWN button)\
> Prerequisite: connection of a suitable array to input ‘arStates’ with elements of type ‘stChangeStateUpDown’\
> Typical application: switching operating modes

### Representation

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-20677cf4319868f3a69b201a16d9c488fbfdba5f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Interfaces

#### Inputs

| Name         | Data type           | Value range | Initial value | Function                                         |
| ------------ | ------------------- | ----------- | ------------- | ------------------------------------------------ |
| *xStateUp*   | BOOL                |             | FALSE         | Switch to the next higher state (rising edge)    |
| *xStateDown* | BOOL                |             | FALSE         | Switch to the next lower state (rising edge)     |
| *xResInit*   | BOOL                |             | FALSE         | Switch to the initialization state (rising edge) |
| *bInitState* | BYTE                |             | 0             | Index of the initialization state                |
| arStates     | stChangeStateUpDown |             |               | Array with the individual states                 |

#### Outputs

| Name          | Data type | Value range | Initial value | Function                    |
| ------------- | --------- | ----------- | ------------- | --------------------------- |
| sStateName    | STRING    |             |               | Name of the current state   |
| iStateNumber’ | INT       |             |               | Number of the current state |

### Functional description

\
This FB is used to switch between freely definable states (each state is defined by a state text and a state number) using the inputs ‘xStateUp’ and ‘xStateDown’.\
After the first download, a repeated download, each online change, and on every rising edge at input ‘xResInit’, the initial state is established. The index of the initial state is defined by input ‘bInitState’.

{% hint style="info" %}
In the event of an error, the string ‘Error’ is output at the ‘sStateName’ output and the value -1 is output at the ‘iStateNumber’ output.
{% endhint %}

#### Typical application

This function block can be used as follows:

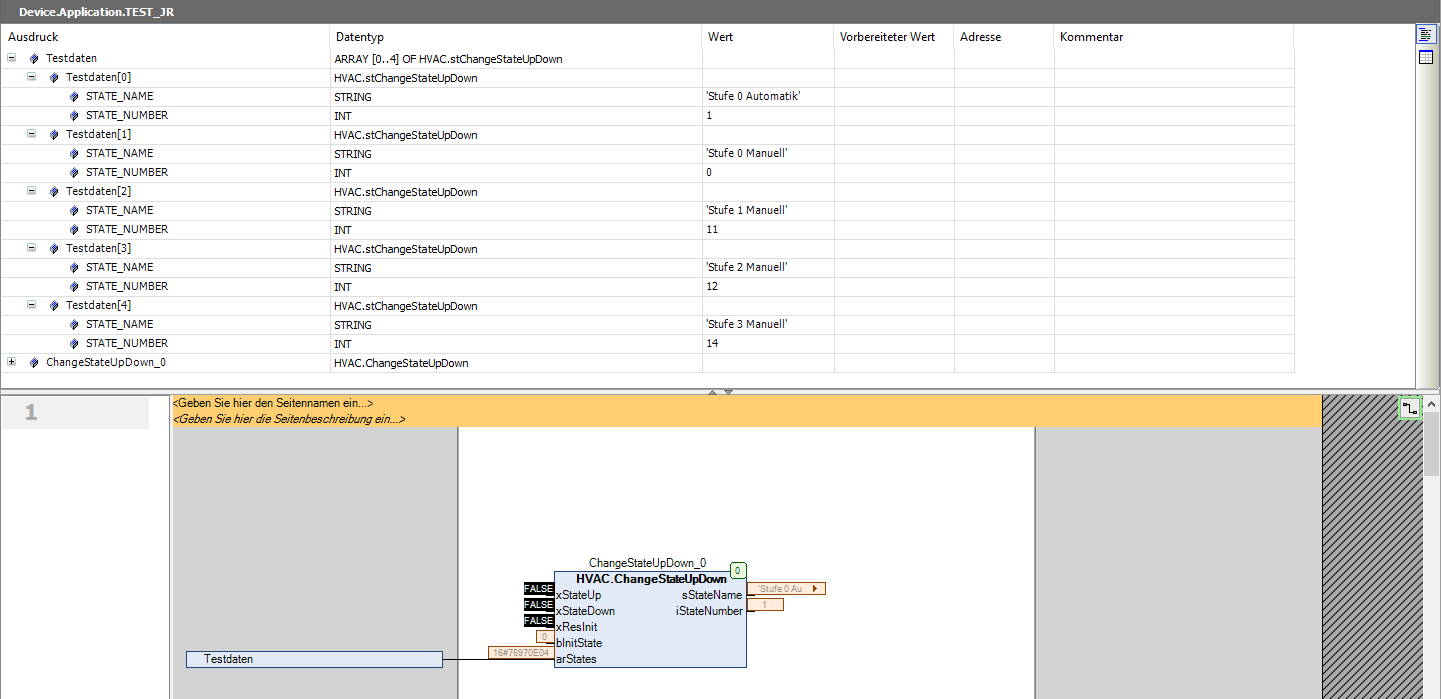

<figure><img src="https://2592874069-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQR4vCFzt6ixgsqlR3pdR%2Fuploads%2Fgit-blob-b4f24777903c7007b6672a52f9187185d22c3738%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### CODESYS

InOut:

| Scope  | Name           | Type                           | Initial |
| ------ | -------------- | ------------------------------ | ------- |
| Input  | `xStateUp`     | `BOOL`                         | FALSE   |
| Input  | `xStateDown`   | `BOOL`                         | FALSE   |
| Input  | `xStateInit`   | `BOOL`                         | FALSE   |
| Input  | `bInitState`   | `BYTE`                         | 0       |
| Output | `sStateName`   | `STRING`                       |         |
| Output | `iStateNumber` | `INT`                          |         |
| Input  | `arStates`     | POINTER TO stChangeStateUpDown |         |


---
