Holiday

Holiday (FB)

FUNCTION_BLOCK Holiday

Short description

Definition of 10 holiday periods ( = channels ) with switch-on and switch-off dates. Typical application: clock system

Representation

Interfaces

Inputs

Name	Data type	Value range	Initial value	Function
xEN	BOOL			Enable / disable the holiday periods ( FALSE = disabled, TRUE = enabled )

Outputs

Name	Data type	Value range	Initial value	Function
xActive	BOOL			State of the holiday periods ( FALSE = not active, TRUE = active )
datActiveFrom	DATE			Switch-on date of the last active holiday period ( channel 10 = highest priority )
datActiveTo	DATE			Switch-off date of the last active holiday period ( channel 10 = highest priority )

Setpoints / parameters

Name	Data type	Value range	Initial value	Function
xCh10_Mode	BOOL		TRUE	Enable / disable channel 10 ( FALSE = disabled, TRUE = enabled )
datCH10_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 10
datCH10_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 10
sCH10_Notice	STRING		'Notice'	Label for channel 10
xCh9_Mode	BOOL		TRUE	Enable / disable channel 9 ( FALSE = disabled, TRUE = enabled )
datCH9_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 9
datCH9_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 9
sCH9_Notice	STRING		'Notice'	Label for channel 9
xCh8_Mode	BOOL		TRUE	Enable / disable channel 8 ( FALSE = disabled, TRUE = enabled )
datCH8_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 8
datCH8_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 8
sCH8_Notice	STRING		'Notice'	Label for channel 8
xCh7_Mode	BOOL		TRUE	Enable / disable channel 7 ( FALSE = disabled, TRUE = enabled )
datCH7_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 7
datCH7_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 7
sCH7_Notice	STRING		'Notice'	Label for channel 7
xCh6_Mode	BOOL		TRUE	Enable / disable channel 6 ( FALSE = disabled, TRUE = enabled )
datCH6_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 6
datCH6_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 6
sCH6_Notice	STRING		'Notice'	Label for channel 6
xCh5_Mode	BOOL		TRUE	Enable / disable channel 5 ( FALSE = disabled, TRUE = enabled )
datCH5_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 5
datCH5_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 5
sCH5_Notice	STRING		'Notice'	Label for channel 5
xCh4_Mode	BOOL		TRUE	Enable / disable channel 4 ( FALSE = disabled, TRUE = enabled )
datCH4_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 4
datCH4_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 4
sCH4_Notice	STRING		'Notice'	Label for channel 4
xCh3_Mode	BOOL		TRUE	Enable / disable channel 3 ( FALSE = disabled, TRUE = enabled )
datCH3_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 3
datCH3_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 3
sCH3_Notice	STRING		'Notice'	Label for channel 3
xCh2_Mode	BOOL		TRUE	Enable / disable channel 2 ( FALSE = disabled, TRUE = enabled )
datCH2_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 2
datCH2_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 2
sCH2_Notice	STRING		'Notice'	Label for channel 2
xCh1_Mode	BOOL		TRUE	Enable / disable channel 1 ( FALSE = disabled, TRUE = enabled )
datCH1_DateFrom	DATE		DATE#2019-1-1	Switch-on date channel 1
datCH1_DateTo	DATE		DATE#2019-1-1	Switch-off date channel 1
sCH1_Notice	STRING		'Notice'	Label for channel 1

Function description

General

This function block evaluates up to 10 freely definable holiday periods ( = channels ). If the evaluation is generally enabled ( xEN = TRUE ), then for all activated holiday periods ( xChX_Mode = TRUE, 0 < X < 11 ) it is checked whether the current date lies within the holiday period. If this is the case for at least one activated holiday period, the output xActive is activated ( = TRUE ). In all other cases the output xActive is deactivated ( = FALSE ). If the switch-off date is earlier than the switch-on date ( channels 1 - 10 ), the switch-off date is internally set equal to the switch-on date. If the switch-on and switch-off date of a channel ( channels 1 - 10 ) are identical, that day is considered a holiday. On the outputs datActiveFrom or datActiveTo are available ( requirement: xEN = TRUE ) the switch-on date / switch-off date of channel 10. \

Prerequisite for using the Holiday function block

The use of the TimeRead2 function block is required for correct operation.\

Visualization

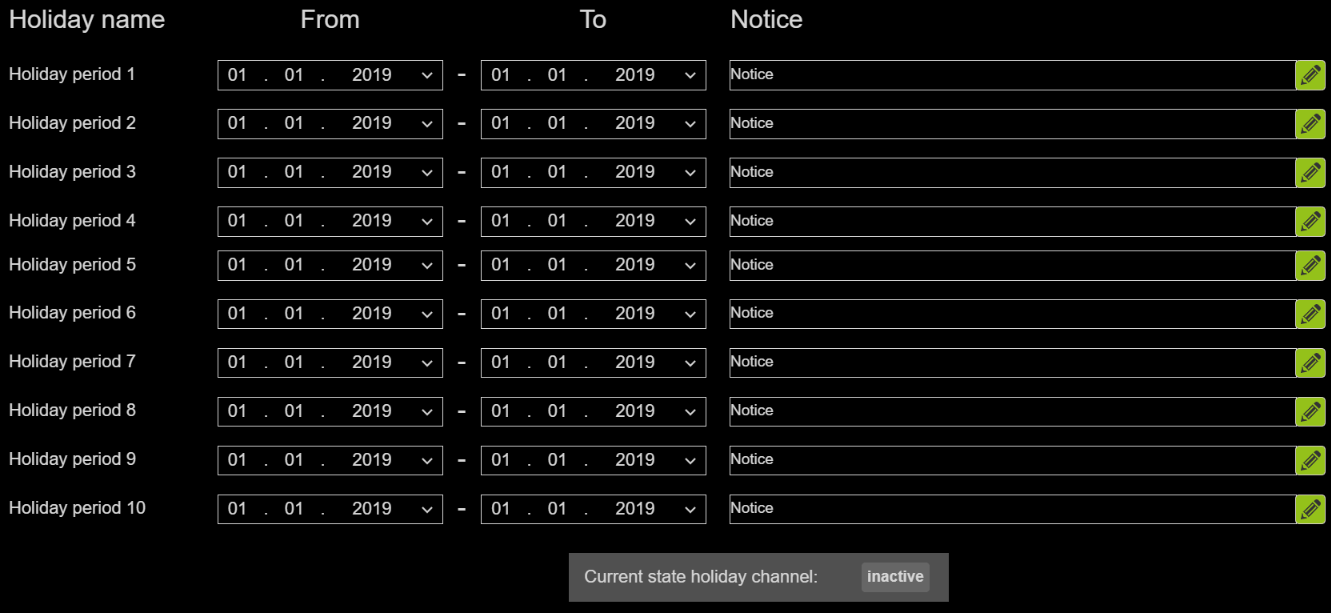

Matching visualization element from the HVACV Visu Library: Holidays

Representation

Visu element interfaces

Name	Data type	Type	Initial value	Function
FB_Holiday	Holiday	VAR_IN_OUT		Enter FB Holiday here e.g. PRG.Holiday
BMS_Active	BOOL	VAR_INPUT		BMS (Building Management System) BMS (building management). If BMS_Active = TRUE the input/editing of the clocks is disabled because they can then only be set via the BMS. Times can then only be viewed.
DisableInput	BOOL	VAR_INPUT		DisableInput = TRUE clock times of the weekly clocks can only be viewed and not edited. /// - BMS (Building Management System) BMS (building management). If BMS_Active = TRUE the input/editing of the clocks is disabled because they can then only be set via the BMS. Times can then only be viewed.

Note: VAR_IN_OUT interfaces must be assigned, VAR_INPUT are optional.

CODESYS

InOut:

Scope	Name	Type	Initial
Input	xEn	BOOL
Input Const	sCH1_Notice	STRING	'Notice'
Input Const	datCH1_DateTo	DATE	DATE#2022-1-1
Input Const	datCH1_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH1_Mode	BOOL	TRUE
Input Const	sCH2_Notice	STRING	'Notice'
Input Const	datCH2_DateTo	DATE	DATE#2022-1-1
Input Const	datCH2_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH2_Mode	BOOL	TRUE
Input Const	sCH3_Notice	STRING	'Notice'
Input Const	datCH3_DateTo	DATE	DATE#2022-1-1
Input Const	datCH3_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH3_Mode	BOOL	TRUE
Input Const	sCH4_Notice	STRING	'Notice'
Input Const	datCH4_DateTo	DATE	DATE#2022-1-1
Input Const	datCH4_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH4_Mode	BOOL	TRUE
Input Const	sCH5_Notice	STRING	'Notice'
Input Const	datCH5_DateTo	DATE	DATE#2022-1-1
Input Const	datCH5_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH5_Mode	BOOL	TRUE
Input Const	sCH6_Notice	STRING	'Notice'
Input Const	datCH6_DateTo	DATE	DATE#2022-1-1
Input Const	datCH6_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH6_Mode	BOOL	TRUE
Input Const	sCH7_Notice	STRING	'Notice'
Input Const	datCH7_DateTo	DATE	DATE#2022-1-1
Input Const	datCH7_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH7_Mode	BOOL	TRUE
Input Const	sCH8_Notice	STRING	'Notice'
Input Const	datCH8_DateTo	DATE	DATE#2022-1-1
Input Const	datCH8_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH8_Mode	BOOL	TRUE
Input Const	sCH9_Notice	STRING	'Notice'
Input Const	datCH9_DateTo	DATE	DATE#2022-1-1
Input Const	datCH9_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH9_Mode	BOOL	TRUE
Input Const	sCH10_Notice	STRING	'Notice'
Input Const	datCH10_DateTo	DATE	DATE#2022-1-1
Input Const	datCH10_DateFrom	DATE	DATE#2022-1-1
Input Const	xCH10_Mode	BOOL	TRUE
Output	xActive	BOOL
Output	datActiveFrom	DATE
Output	datActiveTo	DATE
