KLINGENBURG_OJ_DRHX
KLINGENBURG_OJ_DRHX (FB)
KLINGENBURG_OJ_DRHX (FB)FUNCTION_BLOCK KLINGENBURG_OJ_DRHX

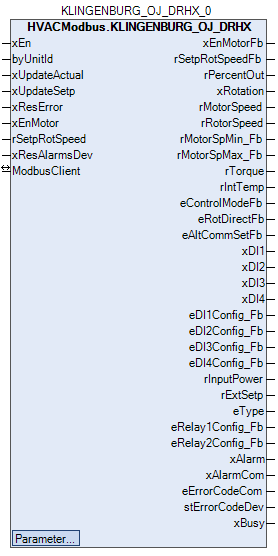

Representation

InOut:
Input
xEn
BOOL
TRUE
Enable / disable of communication ( TRUE = enabled )
Input
byUnitId
BYTE
1
Address of the device ( 1… 247, default = factory setting )
Input
xUpdateActual
BOOL
FALSE
Update of actual values ( on every rising edge )
Input
xUpdateSetp
BOOL
FALSE
Update of setpoint values ( on every rising edge )
Input
xResError
BOOL
FALSE
Reinitialization of the outputs ‘eErrorCodeCom’ and/or ‘stErrorCodeDv’ to the error-free state ( on each rising edge )
Input
xEnMotor
BOOL
FALSE
Enable / disable of the motor ( TRUE = enabled )
Input
rSetpRotSpeed
REAL
0.0
Setpoint - rotational speed in % ( 0.0 - 100.0 % ) ( rMotorSpMin - rMotorSpMax )
Input
xResAlarmsDev
BOOL
FALSE
Reset of all device alarms ( on each rising edge )
Inout
ModbusClient
ModbusClientBase
Client of the device
Output
xEnMotorFb
BOOL
Feedback - enable / disable of the motor ( TRUE = enabled )
Output
rSetpRotSpeedFb
REAL
Feedback - setpoint - rotational speed in % ( 0.0 - 100.0 % ) ( rMotorSpeed_Min - rMotorSpeed_Max )
Output
rPercentOut
REAL
Control signal for the stepper motor in %
Output
xRotation
BOOL
Indication of rotation ( TRUE = rotation )
Output
rMotorSpeed
REAL
Rotational speed of the motor in 1/min
Output
rRotorSpeed
REAL
Rotational speed of the rotor in 1/min
Output
rMotorSpMin_Fb
REAL
Feedback - minimum value - rotational speed of the motor in 1/min
Output
rMotorSpMax_Fb
REAL
Feedback - maximum value - rotational speed of the motor in 1/min
Output
rTorque
REAL
Torque of the motor in Nm
Output
rIntTemp
REAL
Internal temperature
Output
eControlModeFb
OJ_DRHX_CONTROL_MODE
Feedback - type of control ( 0 = MODBUS, 1 = 0-10V )
Output
eRotDirectFb
OJ_DRHX_ROTATION_DIRECT
Feedback - direction of rotation of the rotor ( 0 = clockwise, 1 = counterclockwise )
Output
eAltCommSetFb
OJ_DRHX_ALT_COMM_SET
Feedback - status of the alternative Modbus connection ( FALSE = factory default, TRUE = alternative connection ( Holding Register 13 - 16 ))
Output
xDI1
BOOL
State of digital input 1 ( FALSE = LOW )
Output
xDI2
BOOL
State of digital input 2 ( FALSE = LOW )
Output
xDI3
BOOL
State of digital input 3 ( FALSE = LOW )
Output
xDI4
BOOL
State of digital input 4 ( FALSE = LOW )
Output
eDI1Config_Fb
OJ_DRHX_DIX_CONFIG
Feedback - configuration of digital input 1
Output
eDI2Config_Fb
OJ_DRHX_DIX_CONFIG
Feedback - configuration of digital input 2
Output
eDI3Config_Fb
OJ_DRHX_DIX_CONFIG
Feedback - configuration of digital input 3
Output
eDI4Config_Fb
OJ_DRHX_DIX_CONFIG
Feedback - configuration of digital input 4
Output
rInputPower
REAL
Power consumption [ W ]
Output
rExtSetp
REAL
Voltage at analog input 1 - setpoint rotational speed ( 0.0 - 10000 mV )
Output
eType
OJ_DRHX_TYPE
Type of control
Output
eRelay1Config_Fb
OJ_DRHX_RELAYX_CONFIG
Feedback - configuration of relay 1
Output
eRelay2Config_Fb
OJ_DRHX_RELAYX_CONFIG
Feedback - configuration of relay 2
Output
xAlarm
BOOL
FALSE
Collective fault ( TRUE = Fault )
Output
xAlarmCom
BOOL
FALSE
Collective fault - communication ( TRUE = Fault )
Output
eErrorCodeCom
ModbusErrorCode
Error code - communication ( 0 = no error )
Output
stErrorCodeDev
STRING
String with the numbers of active device errors
Output
xBusy
BOOL
Communication indicator ( TRUE = Communication )
Input Const
rPercentOutMult
REAL
1.0
Multiplier for the output ‘rPercentOut’ ( rPercentOut = transmitted value * 0.01 * rPercentOutMult )
Input Const
rSetpRotSpeedMult
REAL
1.0
Multiplier for the input ‘rSetpRotSpeed’ ( transmitted value = rSetpRotSpeed * 100 * rSetpRotSpeedMult )
Input Const
eDI4Config
OJ_DRHX_DIX_CONFIG
OJ_DRHX_DIX_CONFIG.DISABLED
Input Const
eDI3Config
OJ_DRHX_DIX_CONFIG
OJ_DRHX_DIX_CONFIG.EXT_ROTOR_GUARD_SIGNAL
Configuration of digital input 4
Input Const
eDI2Config
OJ_DRHX_DIX_CONFIG
OJ_DRHX_DIX_CONFIG.ENABLE_EXT_ROTOR_GUARD
Configuration of digital input 3
Input Const
eDI1Config
OJ_DRHX_DIX_CONFIG
OJ_DRHX_DIX_CONFIG.ALARM_RESET
Configuration of digital input 2
Input Const
rKFactor
REAL
100.0
Factor influencing the control signal characteristic in 0-10V operation, k = 10000: linear characteristic 1.1V - 9.5V = rMotorSpMin - rMotorSpMax )
Input Const
rRotorSize
REAL
0.0
Diameter of the rotor in mm ( relevant for the variable ‘rRotorSpeed’, 0 mm = rRotorSpeed = rMotorSpeed )
Input Const
rPulleySize
REAL
0.0
Diameter of the motor pulley in mm ( relevant for the variable ‘rRotorSpeed’, 0 mm = rRotorSpeed = rMotorSpeed )
Input Const
rPurgeCtrlSignal
REAL
10.0
Purge operation: control signal during purge operation in %
Input Const
tPurgeTime
TIME
TIME#10s0ms
Purge operation: duration of the purge operation
Input Const
tPurgeIntervall
TIME
TIME#10m0s0ms
Purge operation: time interval between two purge cycles ( T#0s: disable cyclic purge operation )
Input Const
tPurgeDetect
TIME
TIME#10m0s0ms
Purge operation: minimum inactive time of the heat wheel before triggering the purge operation
Input Const
rMotorSpMax
REAL
250.0
Maximum value - rotational speed of the motor in 1/min
Input Const
rMotorSpMin
REAL
1.0
Minimum value - rotational speed of the motor in 1/min
Input Const
xAutoDetectCtrlMode
BOOL
TRUE
Enable / disable of automatic detection of the operating mode ( FALSE = no automatic detection )
Input Const
eControlMode
OJ_DRHX_CONTROL_MODE
OJ_DRHX_CONTROL_MODE.MODBUS
Input Const
eRotDirect
OJ_DRHX_ROTATION_DIRECT
OJ_DRHX_ROTATION_DIRECT.CLOCK_WISE
Type of control ( 0 = MODBUS, 1 = 0-10V )
Input Const
tTimeUpdateSetp
TIME
TIME#45s0ms
Update interval for the operations influenced by the input ‘xUpdateSetp’
Input Const
tTimeUpdateActual
TIME
TIME#3s0ms
Update interval for the operations influenced by the input ‘xUpdateActual’
