# Using the CODESYS Edge Gateway

To pair the CODESYS Edge Gateway with the powerIO systems and the CODESYS Automation Server, it is necessary to first put the gateway into maintenance mode. The article below explains which steps are required for this.

## Activate/deactivate Edge-Gateway Maintenance Mode

1. Navigate to the IP address of your powerIO device: `http://<IP>:8080`
2. Click the "Password" field and sign in with Enter or click "LOGIN".

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/aff3671b-439a-4182-8a0c-9126eebd7182/ascreenshot.jpeg?tl_px=767,393&#x26;br_px=2487,1354&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=524,276" alt="" width="563">

3\. Navigate to "Applications"

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/7e21fbaa-a574-4497-8a16-ef0305fea30f/ascreenshot.jpeg?tl_px=0,277&#x26;br_px=1719,1238&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=105,277" alt="" width="563">

4\. The gear icon next to the application must be clicked.

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/4d6b0d06-55c4-4487-b298-034cea8f8020/ascreenshot.jpeg?tl_px=1454,0&#x26;br_px=3174,961&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=869,255" alt="" width="563">

**5. Select the "Gateway" configuration**

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/1a6bb083-c022-4fd3-860a-592b4de1f3d5/ascreenshot.jpeg?tl_px=0,263&#x26;br_px=1719,1224&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=448,277" alt="" width="563">

6\. Now adjust the settings in the "Gateway" configuration file.

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/19d0f310-1ae3-4813-a0fb-9a6f74a79d52/ascreenshot.jpeg?tl_px=544,203&#x26;br_px=2264,1164&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=524,277" alt="" width="563">

{% hint style="warning" %}
Activate:

* To activate Maintenance Mode, set the value to 1

Deactivate:

* To deactivate Maintenance Mode, set the value to 0
  {% endhint %}

7\. Apply the setting by clicking "SAVE"

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/754e0fc3-d2b4-4c59-acb6-006740010ce9/ascreenshot.jpeg?tl_px=1454,1607&#x26;br_px=3174,2568&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=774,276" alt="" width="563">

8\. Restart the application so the configuration is applied.

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/3740523e-8c2a-4fa5-a51e-44f8c23723ad/ascreenshot.jpeg?tl_px=1454,0&#x26;br_px=3174,961&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=994,257" alt="" width="563">

{% hint style="danger" %}
Please note that this also restarts the CODESYS Runtime. Without a restart, the setting will not be applied.
{% endhint %}

## Connect Edge-Gateway

1\. Navigate to "Tools"

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/270b1970-4d63-41ab-be07-d031a7b10bc3/ascreenshot.jpeg?tl_px=0,0&#x26;br_px=1719,961&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=425,5" alt="" width="560">

2\. Select "Edge Gateway" and then "Connect Edge Gateway"

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/9531674f-318d-4523-b7f7-e4a2d37798b5/ascreenshot.jpeg?tl_px=472,299&#x26;br_px=2192,1260&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=524,277" alt="" width="560">

3. Connect to the device

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/486a8087-a238-47c6-b5a4-a4b016459d55/ascreenshot.jpeg?tl_px=753,0&#x26;br_px=2473,961&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=523,159" alt="" width="560">

4\. Check the status of the Edge Gateway

<img src="https://ajeuwbhvhr.cloudimg.io/colony-recorder.s3.amazonaws.com/files/2024-08-05/5f61379c-abaa-4f91-bcf4-bd5c4fe61950/ascreenshot.jpeg?tl_px=767,0&#x26;br_px=2487,961&#x26;force_format=png&#x26;width=1120.0&#x26;wat=1&#x26;wat_opacity=1&#x26;wat_gravity=northwest&#x26;wat_url=https://colony-recorder.s3.amazonaws.com/images/watermarks/77328A_standard.png&#x26;wat_pad=524,217" alt="" width="560">

{% hint style="info" %}
In "configuration mode", it is shown whether maintenance mode is active. If it is inactive, activate it as described above. Otherwise, no configurations are possible.\
\
Active:\
![](https://content.gitbook.com/content/TYBzFv70TPLPkr2VWWUS/blobs/L68jHvG563e3MnNe2E1S/Screenshot%202024-08-06%20at%2012.00.18.png)

Inactive:\
![](https://content.gitbook.com/content/TYBzFv70TPLPkr2VWWUS/blobs/W3qcMoswzB5c3Lx9Zfef/Screenshot%202024-08-06%20at%2012.02.00.png)
{% endhint %}

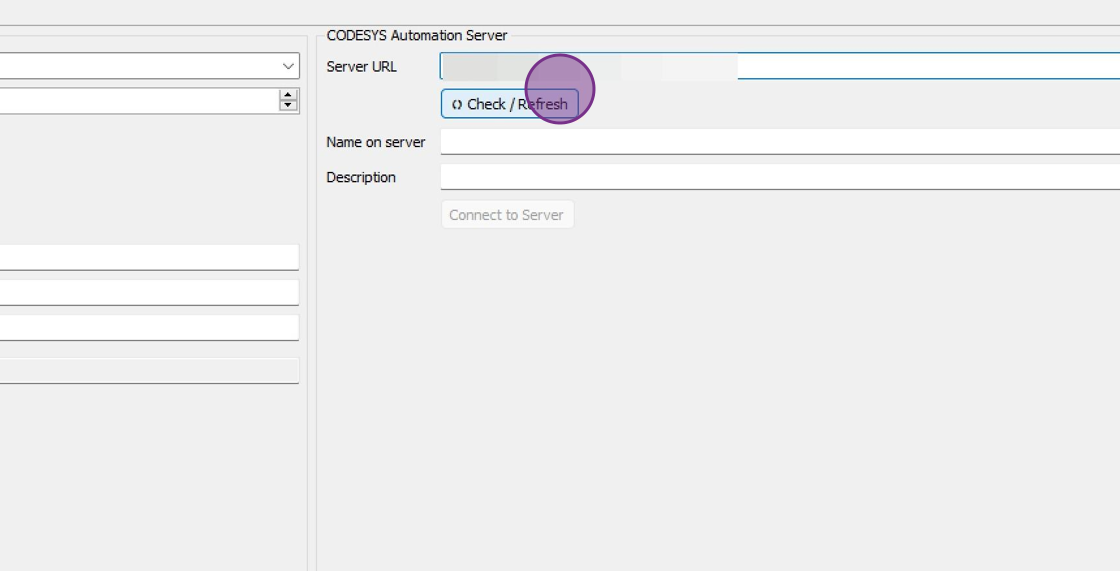

5\. Enter the server URL and click "Check /Refresh"

<figure><img src="https://content.gitbook.com/content/TYBzFv70TPLPkr2VWWUS/blobs/59gTfVhSRQS0aMbfAXHm/Codesys%20development%20system%20Workflow%20-%20Step%204.png" alt="" width="563"><figcaption></figcaption></figure>

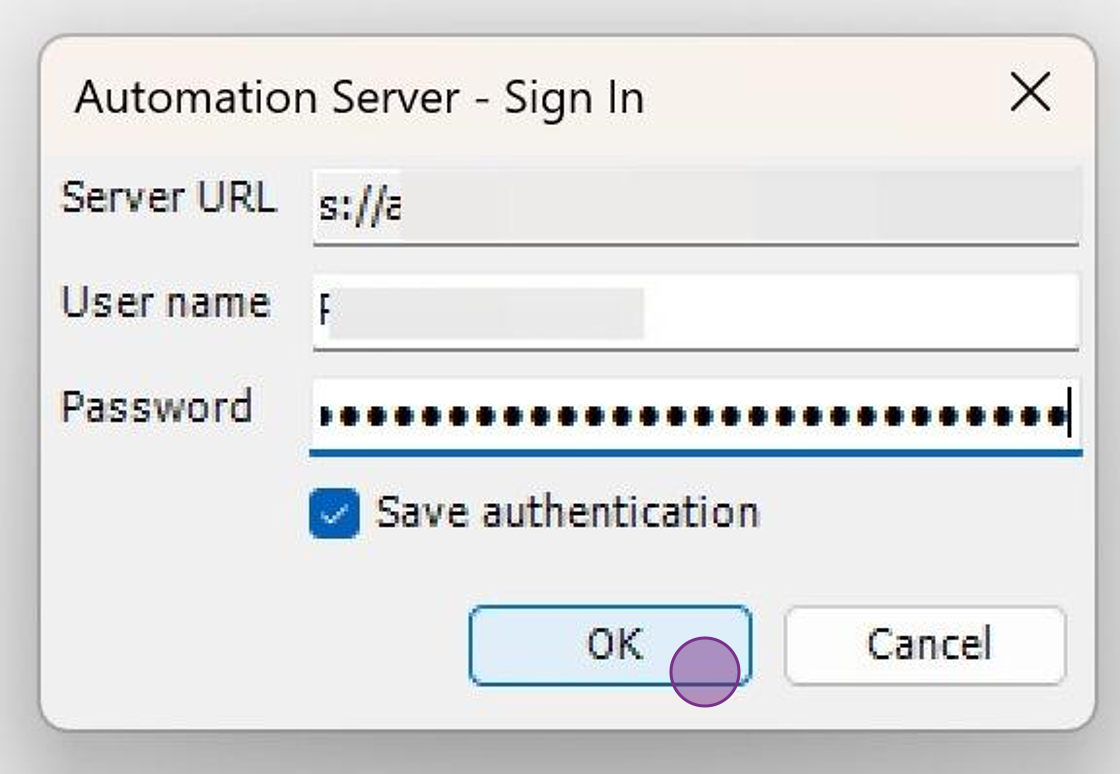

6\. Another window will open. The login data must be entered here.

<figure><img src="https://content.gitbook.com/content/TYBzFv70TPLPkr2VWWUS/blobs/92dpFifeb23fXMrrFaUk/Codesys%20development%20system%20Workflow%20-%20Step%208%20(1).png" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}
If you do not yet have an Automation Server account, please follow the CODESYS instructions.- [Getting started with the CODESYS Automation Server](https://content.helpme-codesys.com/de/CODESYS%20Automation%20Server/_cas_first_steps.html)
{% endhint %}

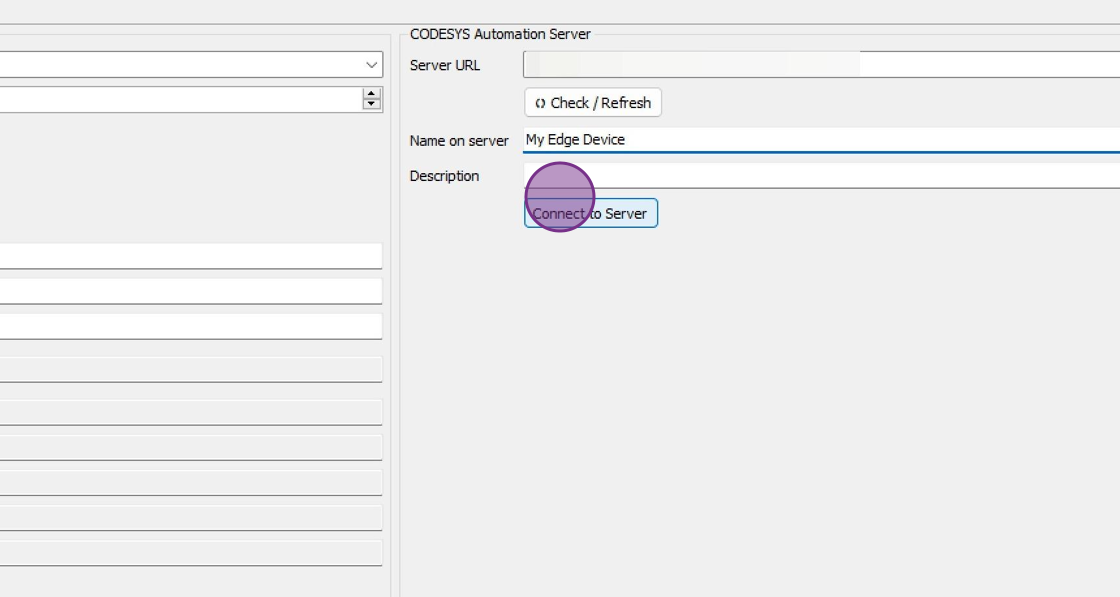

7\. A name can now be assigned to the Edge Gateway. By clicking "Connect to Server", the connection to the Automation Server is established.

<figure><img src="https://content.gitbook.com/content/TYBzFv70TPLPkr2VWWUS/blobs/fJIfjdPxTL45mWzvhWfG/Codesys%20development%20system%20Workflow%20-%20Step%2019.png" alt="" width="563"><figcaption></figcaption></figure>


---
