# Funktionsbausteine

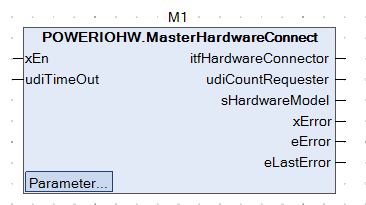

### MasterHardwareConnect <a href="#modbusclient_tcp" id="modbusclient_tcp"></a>

Dieser Baustein wird immer benötigt um mit der powerIO Hardware zu kommunizieren.

<figure><img src="/files/VpTqg5cJqBr4ixtmr6TX" alt=""><figcaption></figcaption></figure>

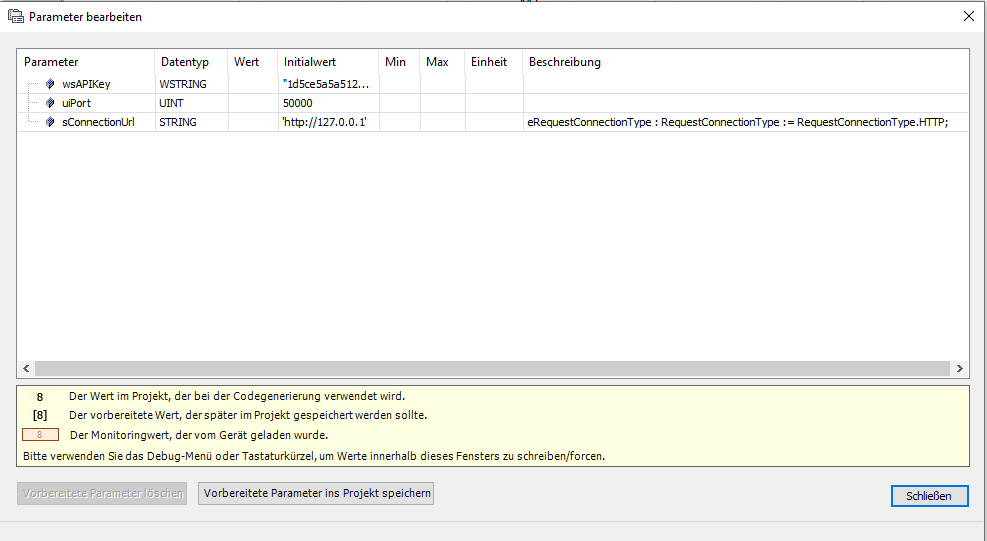

Parameter:

<figure><img src="/files/FWNSW9utVc5EOCzrgq84" alt=""><figcaption></figcaption></figure>

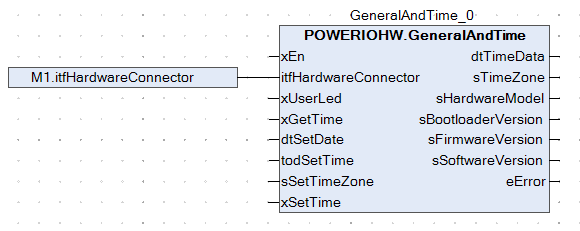

### GeneralAndTime <a href="#modbusclient_rtu" id="modbusclient_rtu"></a>

<figure><img src="/files/AujK670OOGFAoSc64oRa" alt=""><figcaption></figcaption></figure>

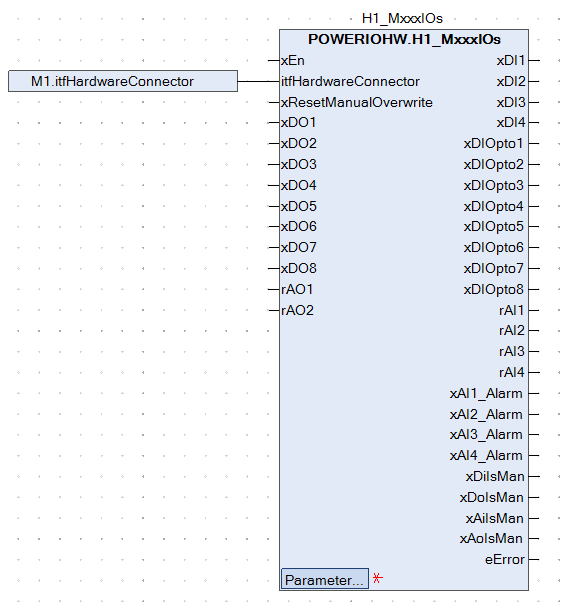

### H1\_MxxxIOs <a href="#solvimus_ge20m_xxx" id="solvimus_ge20m_xxx"></a>

Dieser Baustein funktioniert nur mit der Hardware H1.M100 und H1.M200.\
Nicht mit T1.B100!

Die Parameter ermöglichen die Konfiguration der einzelnen Ein- und Ausgänge.

<figure><img src="/files/gmER5M1d4d105e4We6Rm" alt=""><figcaption></figcaption></figure>

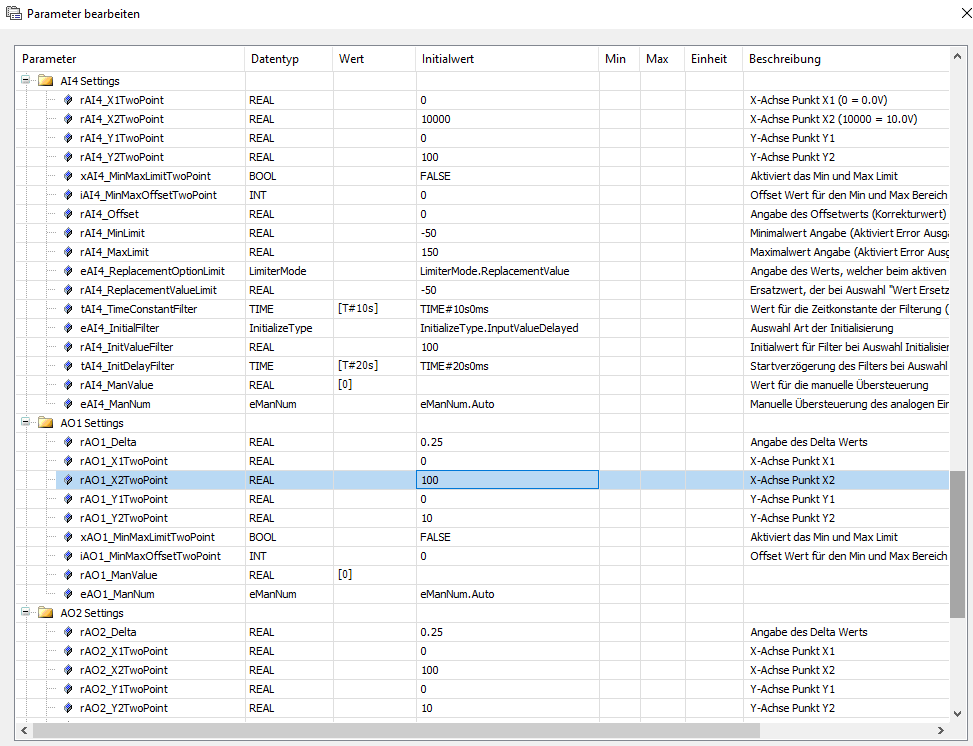

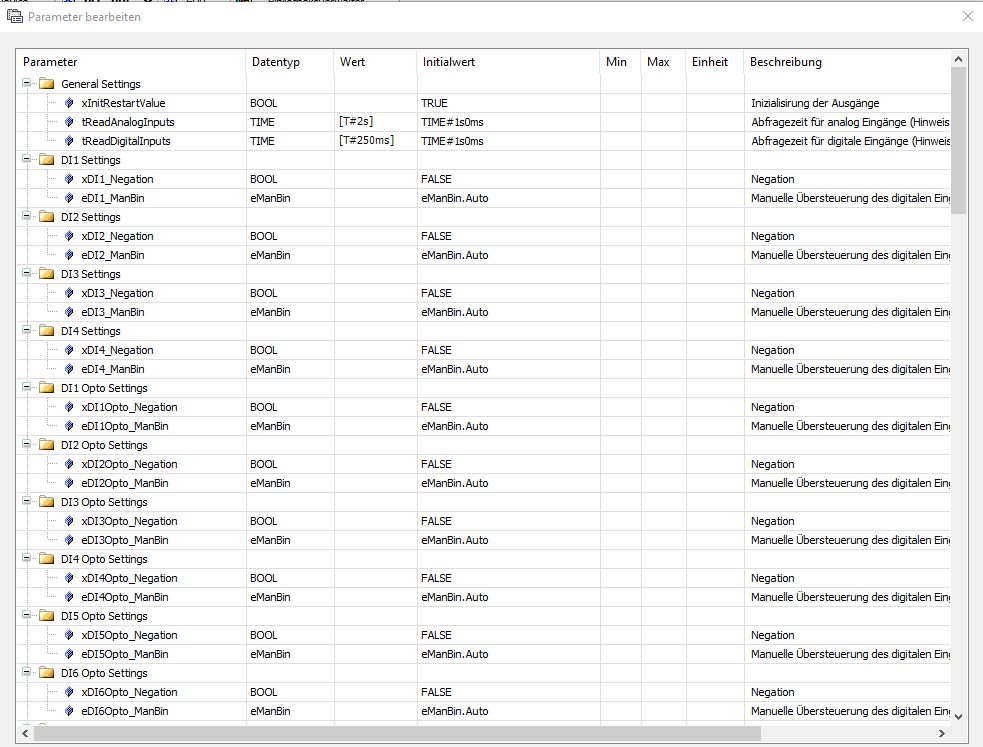

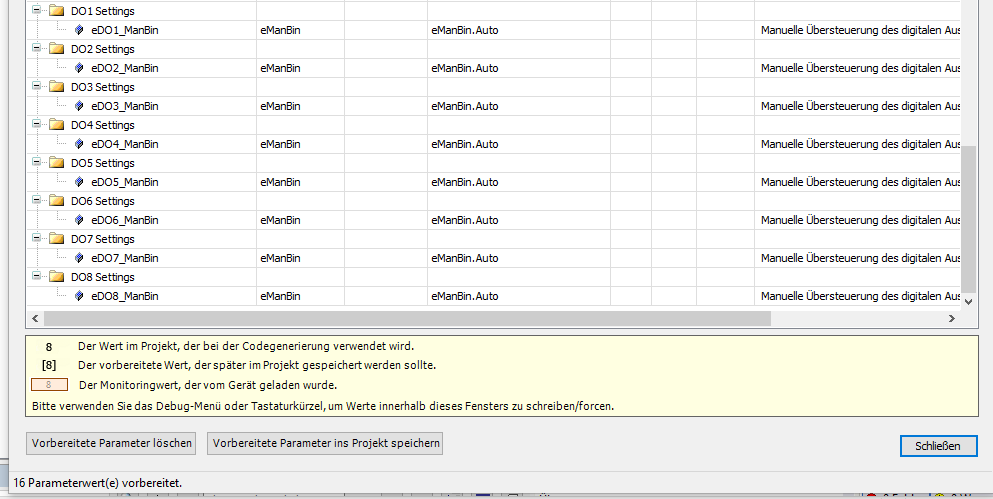

Parameter:

<figure><img src="/files/4R4RovaCdSwuuCHrbn5o" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/MZTvH1HmFdu3aYDvxbLc" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/7mBi0KgTyR7p9rj5Tb4g" alt=""><figcaption></figcaption></figure>


---
