# EBM\_SERIEN\_84\_112\_150\_200\_V5\_0
## `EBM_SERIEN_84_112_150_200_V5_0` (FB)
`FUNCTION_BLOCK` EBM\_SERIEN\_84\_112\_150\_200\_V5\_0

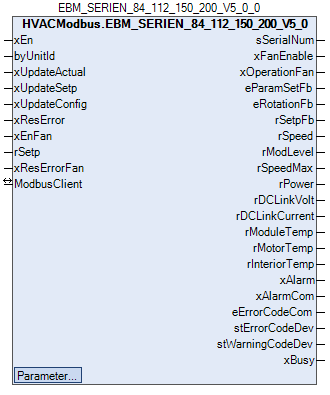

### Representation
### Notes on the fan firmware variant
The firmware variant of the fan can be determined by a read access (FC04) to register D000 (= 53248). The following register values are currently (02.01.2023) valid: 08 = V5\_0 10 = V5\_0 Lite 11 = V5\_0 Lite and add-on module 12 = V5\_02 13 = V5\_01 14 = V6\_0 19 = V6\_3
### Codesys
InOut:
| Scope | Name | Type | Initial | Comment |
| ----------- | --------------------- | ----------------------------------------- | ------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Input | `xEn` | `BOOL` | TRUE | Enable / disable communication (TRUE = enable) |
| Input | `byUnitId` | `BYTE` | 0 | Device address |
| Input | `xUpdateActual` | `BOOL` | FALSE | Update of actual values (on every rising edge
)
|
| Input | `xUpdateSetp` | `BOOL` | FALSE | Update of setpoints (on every rising edge
)
|
| Input | `xUpdateConfig` | `BOOL` | FALSE | Update of the configuration (on each rising edge) |
| Input | `xResError` | `BOOL` | FALSE | Reinitialization of the outputs eErrorCodeCom,
stErrorCodeDev and stWarningCodeDev in the error-free
state (on every rising edge)
|
| Input | `xEnFan` | `BOOL` | FALSE | Enable / lockout of the fan (FALSE = lockout) |
| Input | `rSetp` | `REAL` | 0.0 | Setpoint - fan (0.0 - 100.0% or absolute speed
)
|
| Input | `xResErrorFan` | `BOOL` | FALSE | Reset of active faults in the fan (on every
rising edge)
|
| Inout | `ModbusClient` | `ModbusClientBase` | | Client of the device |
| Output | `sSerialNum` | `STRING` | | Serial number of the fan |
| Output | `xFanEnable` | `BOOL` | | State of the fan enable input (TRUE = On) |
| Output | `xOperationFan` | `BOOL` | | Fan operation message (FALSE = Off) |
| Output | `eParamSetFb` | SERIES\_84\_112\_150\_200\_PARAM\_SET | SERIEN\_84\_112\_150\_200\_PARAM\_SET.PARAM\_SET\_1 | Currently selected parameter set |
| Output | `eRotationFb` | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE.CLOCKWISE | Current direction of rotation |
| Output | `rSetpFb` | `REAL` | | Feedback - Current setpoint |
| Output | `rSpeed` | `REAL` | | Current number of revolutions per minute |
| Output | `rModLevel` | `REAL` | | Current modulation level (0.0 - 100.0%) |
| Output | `rSpeedMax` | `REAL` | | Current maximum number of revolutions per minute |
| Output | `rPower` | `REAL` | | Current power in X.X watts |
| Output | `rDCLinkVolt` | `REAL` | | Current DC voltage in X.X volts |
| Output | `rDCLinkCurrent` | `REAL` | | Current DC current in X.X A |
| Output | `rModuleTemp` | `REAL` | | Current module temperature in XXX degrees Celsius |
| Output | `rMotorTemp` | `REAL` | | Current motor temperature in XXX degrees Celsius |
| Output | `rInteriorTemp` | `REAL` | | Current electronics temperature in XXX degrees Celsius |
| Output | `xAlarm` | `BOOL` | FALSE | Collective fault (TRUE = fault) |
| Output | `xAlarmCom` | `BOOL` | FALSE | Collective fault - communication (TRUE = fault) |
| Output | `eErrorCodeCom` | ModbusErrorCode | | Error code - communication (0 = no error) |
| Output | `stErrorCodeDev` | `STRING` | | String with the numbers of the active device errors |
| Output | `stWarningCodeDev` | `STRING` | | String with the numbers of the active device warnings |
| Output | `xBusy` | `BOOL` | | Communication indicator (TRUE = communication) |
| Input Const | `tTimeUpdatePasswort` | `TIME` | TIME#3m0s0ms | Update interval for the password required for some
write operations. The instance is called cyclically
Setpoints\_0 called.
|
| Input Const | `tTimeEmergency` | `TIME` | TIME#10s0ms | Time until emergency operation (maximum 25.5 s) |
| Input Const | `rSetpEmergency` | `REAL` | 0 | Setpoint - fan (0.0 - 100.0% or absolute speed
) in emergency operation
|
| Input Const | `xOperationEmergency` | `BOOL` | FALSE | General enable/disable of emergency operation (FALSE = lockout
)
|
| Input Const | `eRotationEmergency` | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE.CLOCKWISE | Direction of rotation of the fan in emergency operation |
| Input Const | `sPasswort` | `STRING` | ‘epM EC’ | Password for the user level (‘epM EC’ = Customer/OEM, it
must always be 6 characters)
|
| Input Const | `eControlMode_Set1` | SERIEN\_84\_112\_150\_200\_CONTROL\_MODE | SERIEN\_84\_112\_150\_200\_CONTROL\_MODE.MODULATION\_CONTROL | Operating mode - parameter set 1 |
| Input Const | `eRotation` | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE | SERIEN\_84\_112\_150\_200\_ROTATION\_MODE.CLOCKWISE | Direction of rotation of the fan |
| Input Const | `tTimeUpdateConfig` | `TIME` | TIME#0ms | Update interval for the processes influenced by the input
xUpdateConfig influenced
|
| Input Const | `tTimeUpdateSetp` | `TIME` | TIME#45s0ms | Update interval for the processes influenced by the input
xUpdateSetp influenced
|
| Input Const | `tTimeUpdateActual` | `TIME` | TIME#3s0ms | Update interval for the processes influenced by the input
xUpdateActual influenced
|
